Compuprint 3056/N Serial Matrix Passbook Printer

Regular price
₱0.00
Sale price
₱0.00
Regular price
Availability: Out Of Stock
data-base-url="https://www.solidmac.com.ph/" data-variant-id="46824192868525" data-has-only-default-variant="true" >

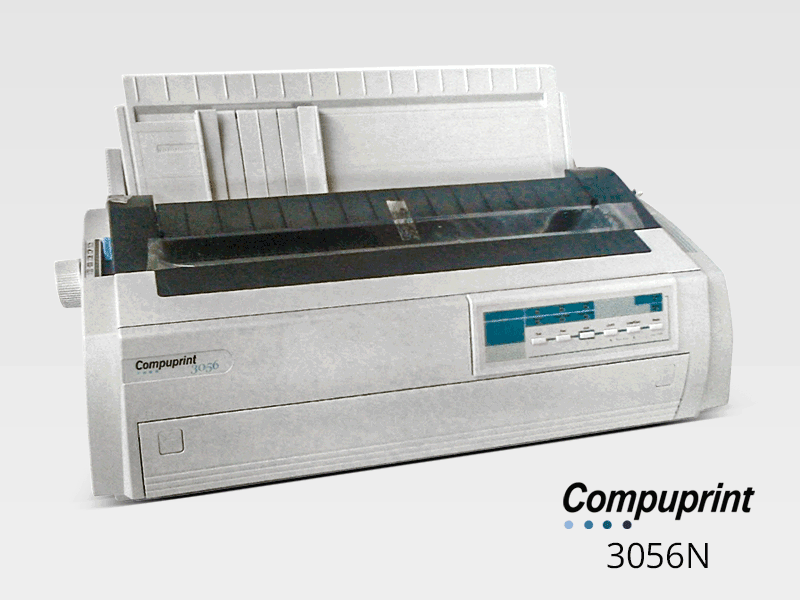

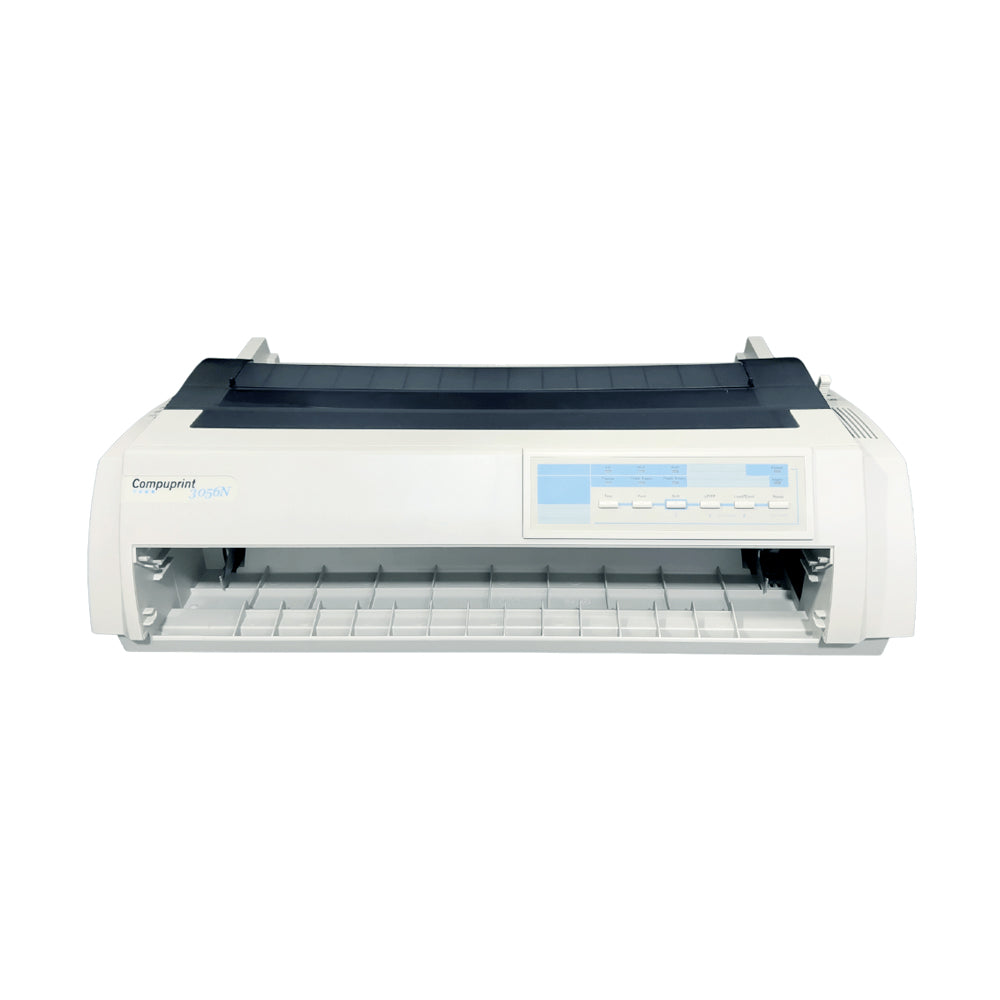

Compuprint 3056/N Serial Matrix Passbook Printer

The Compuprint 3000 family is designed to be the ideal solution in Office and Industrial, logistics environments. Its robustness and reliability provide unmatched performance and flexibility to support a variety of forms and documents printing. A complete range of products ready for any environment including the LAN thanks to the integrated Ethernet board.

The Compuprint 3056 and 3056N are designed to be the ideal solution for administrative applications as well for industrial and logistics environments. These printers satisfy a wide range of printing solutions thanks to the architectural semplicity of the front form feed and refined printing technology. Compuprint 3056 and 3056N are suited for printing applicationsusingmultipartforms,singlesheets,labelsand envelopes.

Values and Features

  • 24 pins print-head technology
  • 136 columns
  • 650 cps speed
  • High performance in volume printing
  • Ribbon life up to 15 MC
  • Complete and flexible paper handling (fanfold and cut sheet)
  • 1+6 copies capability
  • Simple to use
  • Input buffer up to 256Kb
  • LCD Display (for display model only)
  • Interface configurations:
    • Parallel, Serial and USB
    • Parallel, USB, LAN

Matching your needs and getting your job done in time

Compuprint 3056 and 3056N are ideal for use in a broad range of industries, from
data processing, banking, pharmaceuticals or healthcare, warehouse and logistic, education and public administrations.
These printers in single ormulti-user environments print at speeds of up to 480 characters per second in draft mode offering an excellent print quality with clear, crisp output of text and graphics.


Safe and simple paper management

Thanks to the possibility to choose either front or rear paper feed these printers are the best solution for all types of working environment.Straight feeding enables a wide variety of both single sheet, continuous and multiple copy forms to be
managed in a safe and reliable manner. It is also possible to install both printers a second tractor to improve the productivity.

For a broad range of connectivity

Compuprint 3056 is available in two different configurations, Parallel/Serial/USB or Parallel/USB/LAN to let the user able the installation on networked environment. The LAN models are provided with a Network Interface Manager which is a software used to manage online network dot matrix printers.

Specification Details
Printing Technology 24-pin serial dot matrix printers
Printing Resolution 360 × 360 dpi
Printing Speed (*) 12 cpi / 10 cpi
Line Length 136 columns @ 10 cpi
Display LCD display – 3 lines with 16 characters each (display model only)
Paper Handling – Cut Sheet Width: 101–420 mm; A5, A4, A3 (H/V); Length: up to 364 mm
Paper Handling – Continuous Form Width: 101–406 mm; Length: Unlimited
Paper Thickness 0.065–0.52 mm
Paper Type Cut sheet, Continuous paper, Multi-part forms, Envelopes, Postcard, Adhesive labels
Paper Path Friction feed: Rear in/top out, Front in/top outTractor feed: Rear in/top out, Front in/top out, Bottom in/top out
Copies 1 + 6
Special Functions Automatic paper parking; Zero tear-off; Bi-directional print direction with logic seeking; Up to 4 customizable program settings
Barcodes UPC-A, EAN-8, EAN-13, UPCA/E, Code 39, Code 128, 2/5 Interleaved, Postnet
Character Set ASCII, Italic, CP437, CP850, CP860, CP863, CP865, CP858, CP737 (437G), CP857, CP1250, CP864, CP1098, CP1256
International Character Set USA, France, Germany, England, Denmark, Sweden, Italy, Spain, Japan, Norway, Denmark 2, Spain 2, Latin America, Korea, Legal
Resident Font Draft, Courier, Roman, Sans Serif, Prestige, Script, Orator, Orator-S, OCR-A, OCR-B
Resident Emulations Epson® LQ-ESC/P, OKI, IBM ProPrinter (PPDS)
Interfaces – Base Models Centronics, Parallel IEEE 1284 bidirectional, Serial RS232, USB
Interfaces – N Models Centronics, Parallel IEEE 1284 bidirectional, USB, Ethernet LAN 10/100 BaseT
Input Buffer Up to 256 Kbytes
Interface Features Automatic interface switching; Plug & Play (Windows environment)
Drivers Windows 95/98/2000/XP/Vista/Win7/Win8/Win10, Unix, Linux
Software Tool Network Interface Manager; Internal web page
Reliability – MTBF 25,000 hours
Reliability – MVBF > 40 million lines
Print Head Life Up to 500 million strokes/wire
Ribbon Life Up to 15 million characters
Noise Level < 55 dBA
Power Supply Voltage: 100–240 V; Frequency: 50–60 Hz
Power Consumption Approx. 45 W (printing DinLetter); 10 W (standby)
Physical Dimensions 623 (W) × 395 (D) × 173 (H) mm
Weight 13 kg
