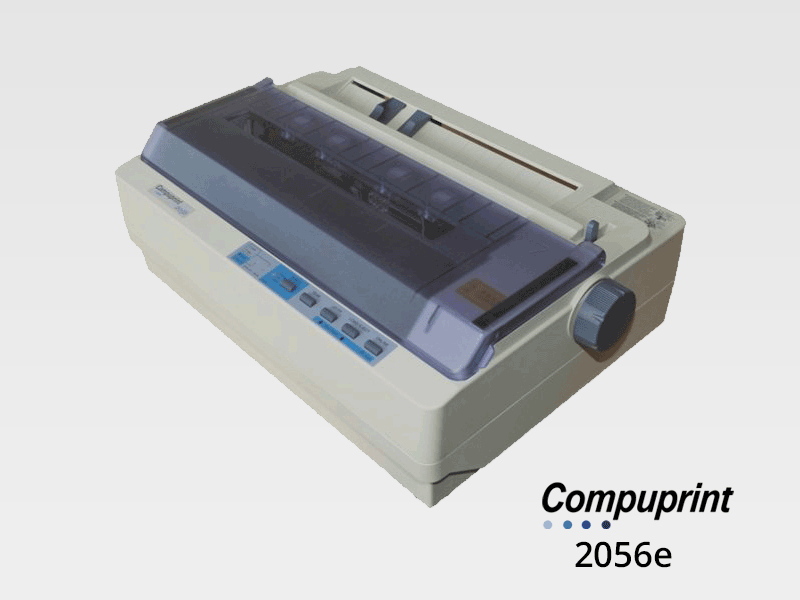

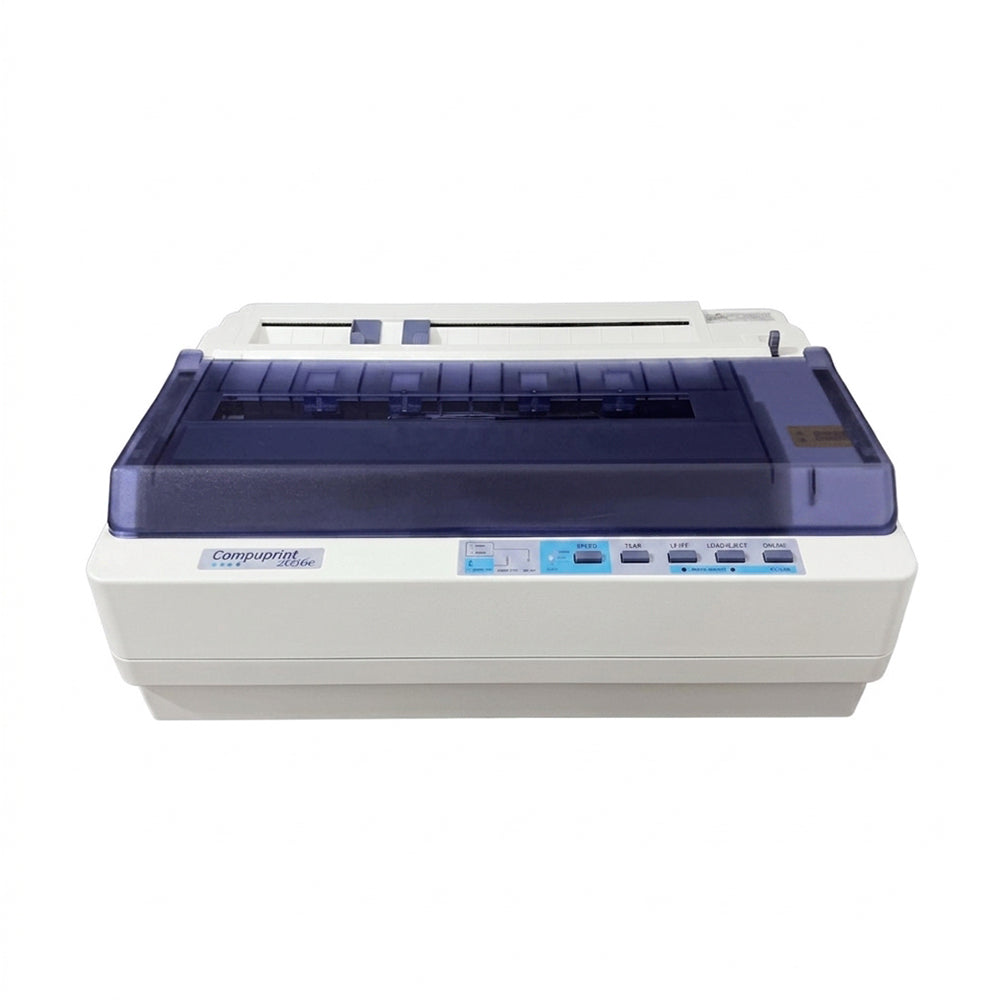

Compuprint 2056e Serial Matrix Passbook Printer
- Regular price
- ₱0.00
- Sale price
- ₱0.00
- Regular price
-
- Unit price
- per
Couldn't load pickup availability
Share

The Compuprint 2056e Serial Matrix Passbook Printer
is ideal solution for printing in hospitals, hotels, retail stores, airport check in, banking, pharmaceutical or healtcare, education and public administrationas and POS environments. It is a very economical printer and suitable for printing applications using multiparts forms, single sheets, labels and envelopes.
Compuprint 2056e satisfies typical needs in hospitals, hotels, retail stores, as well as in industrial and logistics environments. As a very economical printer the Compuprint 2056e helps to save money with its longlife ribbon of 10 milion characters and its low power consumption. Compuprint 2056e is the best choice for printing applications using multipart forms, single sheets, labels and envelopes.
Values and Features
- 24 pins print-head technology
- 80 columns
- 420 cps at 10cpi
- Complete and flexible paper handling (fanfold and cut sheet)
- Ribbon life: 10 MC
- 1+5 copies capability
- Wide range of fonts and barcodes
- Simple to use
- Interface configurations:
- Parallel, Ser, USB, LAN
Versatile, economic and reliable
The Compuprint 2056e is the most economic both in terms of its price and on duty. With an easy-to-use operator panel, low printing noise and multiple interfaces included as standard, the Compuprint 2056e is user friendly. The Compuprint 2056e brings higher levels of print quality to general business and point of sale applications producing invoices, receipts, dispatch notes, labels and end of day reports.
| Specification | Details |
|---|---|
| Print Technology | Serial Dot Matrix Printer |
| Print Head | 24 pins (Ø 0.22 mm); Lifetime: > 500 million strokes/pin (equivalent to 200 million characters) |
| Print Speed (*) | 10 cpi: Very High Speed Draft: 420 cps; High Speed Draft: 340 cps; Draft: 170 cps; LQ: 112 cps |
| Print Width | Max. 80 columns @ 10 characters/inch |
| Paper Handling – Continuous Form | Rear loading; Paper width: 56–267 mm |
| Paper Handling – Cut Sheet | Paper width: 48–261 mm; Weight: 52–90 g/m² |
| Paper Handling – Label | Liner width: 101.6–254 mm; Smallest label: 63.5 × 23.8 mm; Weight: max. 68 g/m² |
| Copies | 1 + 5; Max. thickness: 0.52 mm |
| Special Functions | Automatic pin alternation to decrease workload on frequently used pins; Smart pin surveillance to substitute broken pins; Printer configuration by remote control (PC software) |
| Graphic Resolution | 360 × 360 dpi |
| Vertical Spacing | 6 lines/inch; 8 lines/inch; n/360 per inch |
| Horizontal Spacing | 10, 12, 15, 17, 20 cpi and proportional |
| 1D Codes (Barcodes) | EAN-8, EAN-13, 2/5 Interleaved, 2/5 Matrix, 2/5 Industrial, Code 39, Code 128, NW-7 |
| Fonts | Draft, Courier, OCR-A, OCR-B, Prestige, Presentor, Roman, Sans Serif, Script |
| Character Sets – International | 17 international character sets: U.S.A., France, Germany, U.K., Denmark 1 & 2, Sweden, Italy, Spain 1 & 2, Japan, Norway, Latin America, Korea, Legal, Netherlands, Turkey |
| Character Sets – IBM & EPSON | CP437 (USA), CP437G (Greek), CP850 (Multilingual), CP851 (Greek), CP852 (Eastern Europe), CP853 (Turkish), CP855 (Cyrillic), CP861 (Iceland), CP863 (French-Canadian), CP860 (Portugal), CP865 (Danish-Norwegian), CP866 (Russian), CP1250 (Latin2 Windows), CP1251 (Cyrillic), CP1252 (Latin1 Windows), CP1253 (Greek Windows), MAZOWIA, KAMENICKY, ISO Latin 1, 2, 7, 9, BULGARIA, HUNGARY, ARAB NLS, ARAB EXT, KBL |
| Emulation | Epson® LQ ESC/P2, IBM® Personal Printer 2391 |
| Driver | Windows 2000/XP/7/8/10/11 (32 & 64 bit), Server 2003/2008, Linux |
| Interfaces | Parallel IEEE 1284 bidirectional, USB 2.0 (Full Speed) or Parallel, USB 2.0, Serial, LAN |
| Buffer | 256 KB |
| Reliability – MTBF | > 10,000 hours (IEC 605.7 standard) |
| Ribbon Life | Black ribbon; > 10 million characters in Draft mode |
| Noise Level | < 53 dB(A) (ISO 7779 Standard) |
| Power Supply – Voltage | AC 110–240 V |
| Power Supply – Frequency | 50/60 Hz |
| Power Consumption | Printing: 70 W average; Standby: 4.6 W |
| Dimensions | Depth: 28.0 cm; Width: 38.4 cm; Height: 13.9 cm |
| Weight | 6 kg |
| Options | Roll Paper Holder (On Request) |
