Compact Efficiency with Excellent Print Quality

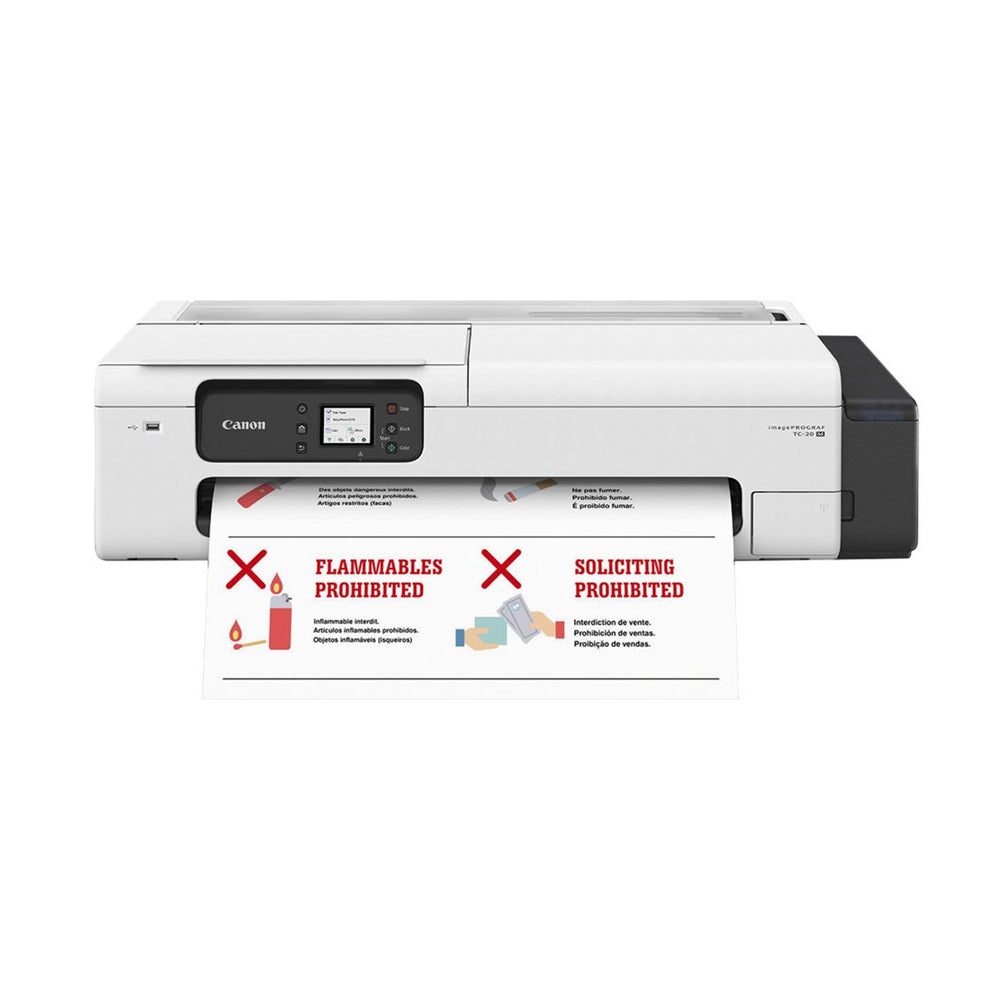

TC-20, 24 inch desktop large format printer comes with roll support and standard built-in auto sheet feeder, produces quality drawings & poster prints for hybrid workplaces.

✅ Suitable for CAD & poster printing
✅ 4-colour pigment ink
✅ Space-saving desktop model
✅ Support free poster & print submission applications

Specifications in detail

Printer Technology

• Printer Type
  4 Colour 24"
• Print Technology
  Canon Pigment ink 4 colours integrated type (4 chips per print head x 1 print head)
• Print Resolution
  2,400 x 1,200 dpi
• Number of Nozzles
  Total : 4352 nozzles  BK : 1280 nozzles  C, M, Y : 1024 nozzles each
• Line Accuracy
  ±0.1% or less
  User adjustments necessary. Printing environment and media must match those used for the adjustments.
• Nozzle Pitch
  1,200 dpi x 2 lines
• Ink Capacity
  Bundled Starter Ink: 280ml (70mlx4 for BK, C, M, Y)
  Sales Ink: 70ml (BK, C, M, Y)
• Ink Type
  Pigment inks : 4 colour  BK/C/M/Y
• OS Compatibility
  32 Bit: Windows7, Windows 8.1, Windows 10
  64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022
  Apple Macintosh: macOS 10.14.6～macOS 12,x
• Printer Languages
  SGRaster
• Standard Interfaces
  USB A Port: N/A
  USB B Port: Hi-Speed USB
  Ethernet: IEEE802.3u(100BASE-TX) / IEEE802.3(10BASE-T)
  Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b

  *Please refer to user manual how to activate/deactivate the wireless LAN

Memory

• Standard Memory
  1GB
  Expansion slot : No
• Hard Drive
  N/A

Print Speed

• CAD Drawing
  Plain paper (A1, B&W):
  0:33 (Standard)

  Plain Paper (A1, Colour):
  1:03 (Standard)
• Poster
  Plain Paper (A1):
  1:10 (Fast)
  2:08 (Standard)

  Coated Paper (A1):
  3:10 (Fast)
  6:05 (Standard)

Media Handling

• Media Feed and Output
  Roll Paper : One Roll, Front-loading, Front Output
  Cut Sheet : Auto sheet feeder
• Media Width
  Roll paper : 297mm - 610mm
  Cut sheet: 210mm - 297mm
• Media Thickness
  Roll/Cut : 0.08mm - 0.28mm
• Minimum Printable Length
  Roll/Cut : 203.2mm
• Maximum Printable Length
  Roll paper : 4m
  Cut sheet : 432mm
• Maximum Media Roll Diameter
  110mm
• Media Core Size
  Internal diameter of roll core: 2"
• Margins Recommended Area
  Roll paper: Top: 5mm, Bottom: 5mm, Side: 5mm
  (some photo mode: Top: 30mm, Bottom: 30mm)
  Cut sheet: Top: 5mm, Bottom: 5mm, Side: 5mm
• Margins Printable Area
  Roll paper: Top: 5mm, Bottom: 5mm, Side: 5mm
  (some photo mode: Top: 30mm, Bottom: 30mm)
  Cut sheet: Top: 5mm, Bottom: 5mm, Side: 5mm
• Media Feed Capacity
  Roll Paper: One roll
  Cut Sheet: 100 sheets(A4), 50 sheets (A3)
• Media Take-Up Roll Unit
  N/A
• Borderless Printing Width (Roll Only)
  N/A
• Maximum Number of Delivered Prints
  Desktop Basket (BU-06): Standard position - 1 sheet

Power and Operating Requirements

• Power Supply
  AC 100-240V (50-60Hz)
• Power Consumption
  Operation: 28W or less
  Sleep mode: 2.4W or less (using all ports)
  Default setting for the time to enter the Sleep mode: Approx. 5 minutes
  Power off: 0.3W or less
• Operating Environment
  Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation)
• Acoustic Noise (Power/Pressure)
  Operation: Approx. 42.5 dB(A) (Plain paper, Standard mode, Line Drawing/Text mode)
  Standby: 35 dB(A) or less
  (Measured on ISO 7779 standard)
• Regulations
  CE mark, UKCA mark
• Environment Certificates
  CB certfication, EPEAT GOLD¹

Dimensions and Weight

• Physical Dimensions and Weight
  W x D x H
  Main Unit
  968 x 545 x 395 mm (ASF Opened)
  968 x 525 x 245 mm (ASF Closed)
  32 kg (exclude ink bottle, include print head)

  Main Unit + Desktop Basket (BU-06)
  968 x 825 x 965* mm (Basket Opened)
  968 x 595 x 965* mm (Basket Closed)
  33 kg (exclude ink bottle, include print head)
  *Height above which cloth does not touch the floor when opening the desktop basket

  Main Unit + Stand + Basket (SD-24)
  968 × 870 × 874 mm (Basket Opened)
  968 × 707 × 874 mm (Basket Closed)
  40 kg (exclude ink bottle, include print head)
• Packaged Dimensions and Weight
  Printer (Main unit): 1120 x 726 x 406 mm, 43kg
  Desktop Basket (BU-06): 798 x 301 x 111 mm, 1.8kg
  Stand + Basket (SD-24): 1055 x 824 x 268 mm, 16kg

What's Included

• What's in the Box?
  Printer, 1 Print head, Power Cable, 1 Set of starter ink tanks, Installation Guide, Safety/Standard Environment leaflet, EU Biocide Sheet, LFP Eur Address Sheet, Flange protective materials sheet
• Software Included
  Software available as Download from Web

Options

• Optional Items
  Desktop Basket: BU-06
  Printer Stand + Basket: SD-24

Consumables

• User Replaceable Items
  Ink Tank: PFl-050 (70ml)
  Print Head: PF-08
  Maintenance Cartridge: MC-32
