Admiral NC-7100 Discriminator/Sorter

Regular price
₱0.00
Sale price
₱0.00
Regular price
Sku: SBMCIAdmiralNC7100
Availability: In Stock
available data-base-url="https://www.solidmac.com.ph/" data-variant-id="46824119861421" data-has-only-default-variant="true" >

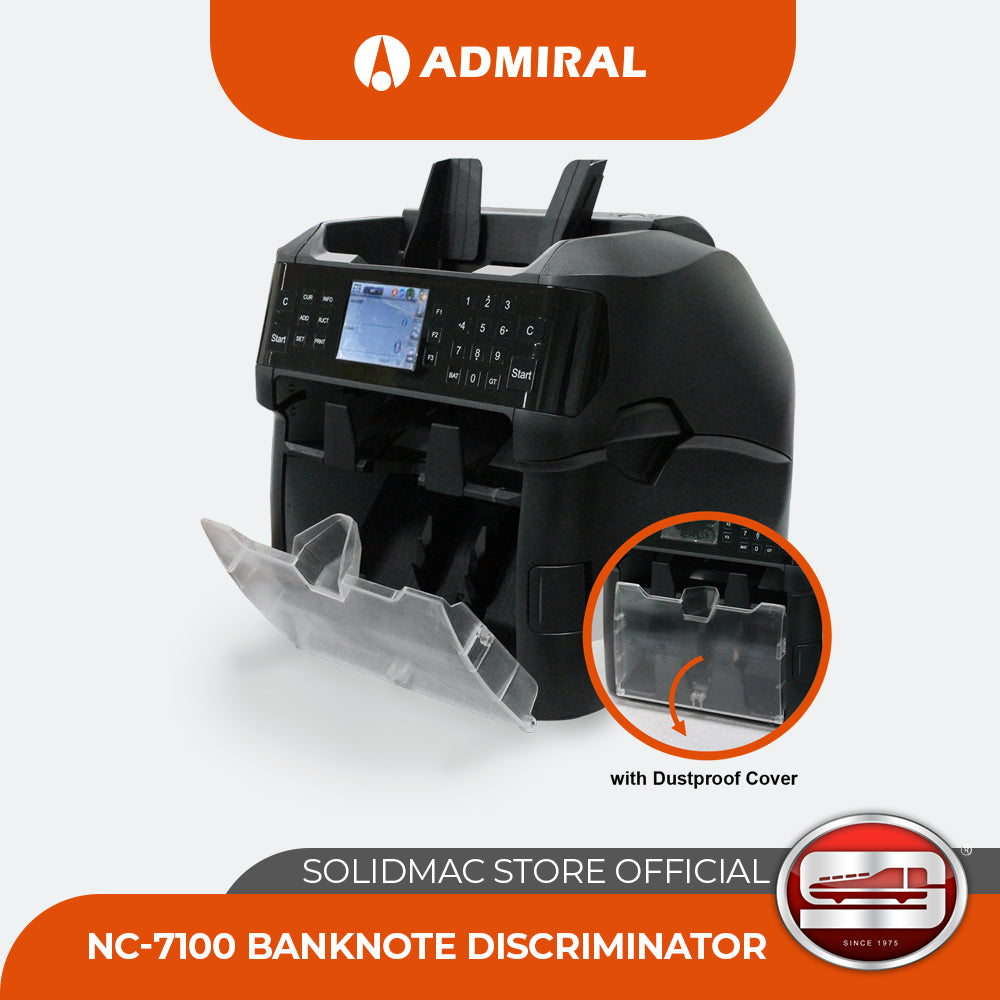

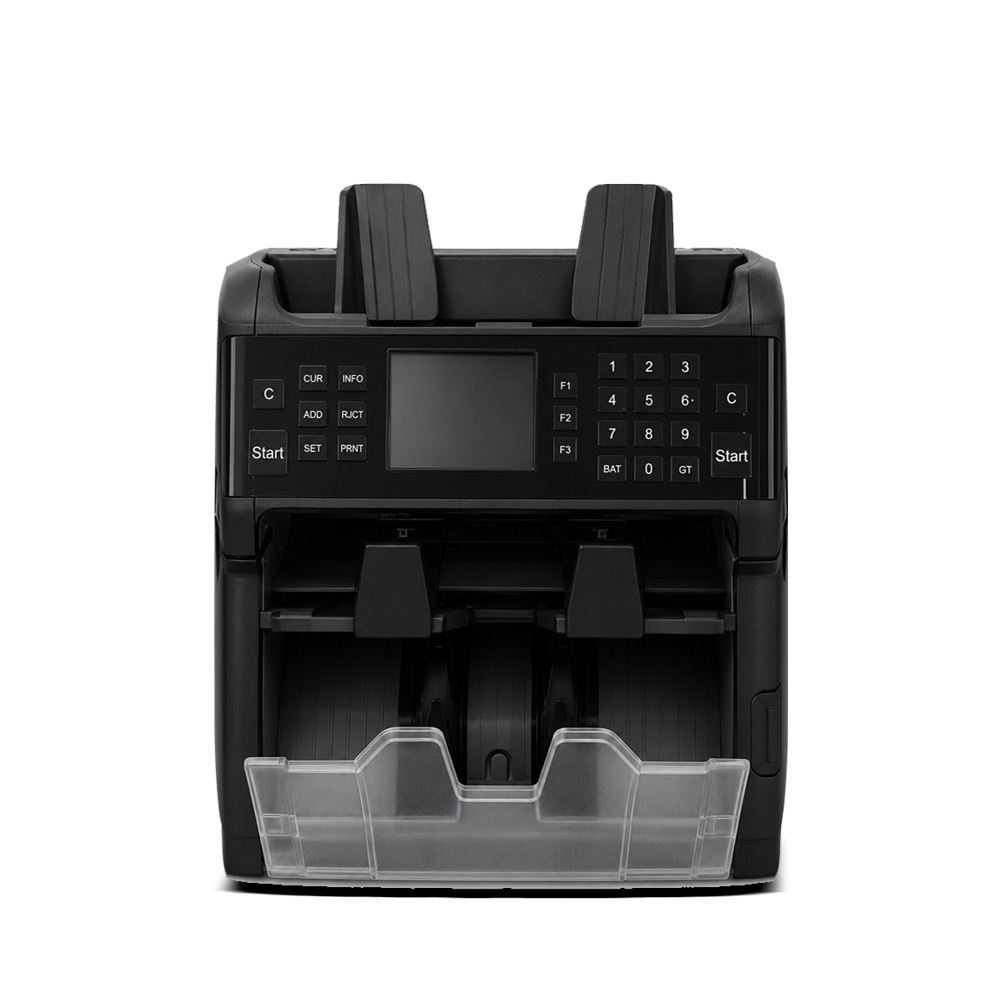

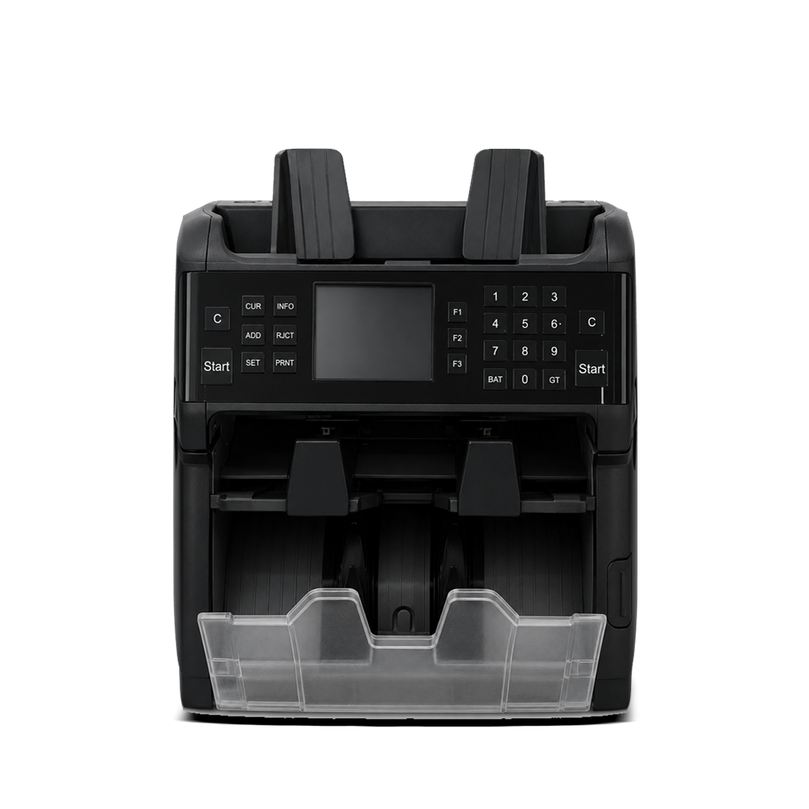

Admiral NC-7100 Discriminator/SorterAdmiral NC-7100 Discriminator/Sorter

The state-of-the-art Admiral NC-7100 Series is a high-performance currency sorter engineered to count and sort banknotes at speeds up to 1,000 notes per minute. This compact 2-pocket sorter enhances cash management efficiency by enabling in-branch note recycling, reducing manual workload, and delivering consistent accuracy. Designed for modern banking operations, the NC-7100 Series combines cost-effectiveness with reliable productivity to meet growing demands for streamlined cash handling at branch locations.

Features
• Capable of sorting mixed banknote by denomination, fitness, orientation with fewer steps and short overall processing cycle.
• Sorting banknote of fitness or quality with its capacity to detect folded corners, holes, soil, tears and tape as unfit notes.
• Capable or recognizing multicurrency based on character of each banknote.
• Applicable in casino  by which the machine  read casino ticket based on the parameter defined.
• Full range of I/O port.
• Use software (End User Tool) to save and track each transaction by date, customer’s name, and serial number.
• Count mode: Mixed, single, count, denomination
• Multi-currencies handling capability
• Denomination Sorting
• User Friendly
• User Interface

Specification

Feed Type Roller Friction Type
Counterfeit Detection Dual CIS, IR Reflection and Transmition, MR, MG*2,  Thickness Sensor
Speed Piece Count - 1500 notes/min
Denomination Count - 1000 notes/min
Serial number Count - 1000 notes/min
Available Currencies 7 currencies default with maximum of 12 currencies
Denomination Detection Contact Image Sensor
Hopper Capacity 500 notes (circulated notes)
Pocket Capacity Main Pocket / Stacker Capacity 250 notes (circulated notes)
Reject Pocket Capacity Max. 100 notes (circulated notes)
Countable Note Size 60 x 85 x 0.08mm - 100 x 190 x 0.12mm
Display 3.5 inch. color TFT, LCD
Power Supply 100 - 240V AC, 50/60Hz
Power consumption Max. 150W
Dimensions 330(W) x 330(D) x 350(H)mm
Weight Approx. 18Kg
Options Remote Display
Thermal Printer
Options Dual RS-232
PC Connection (USB)
SD card
LAN
Remote Display
